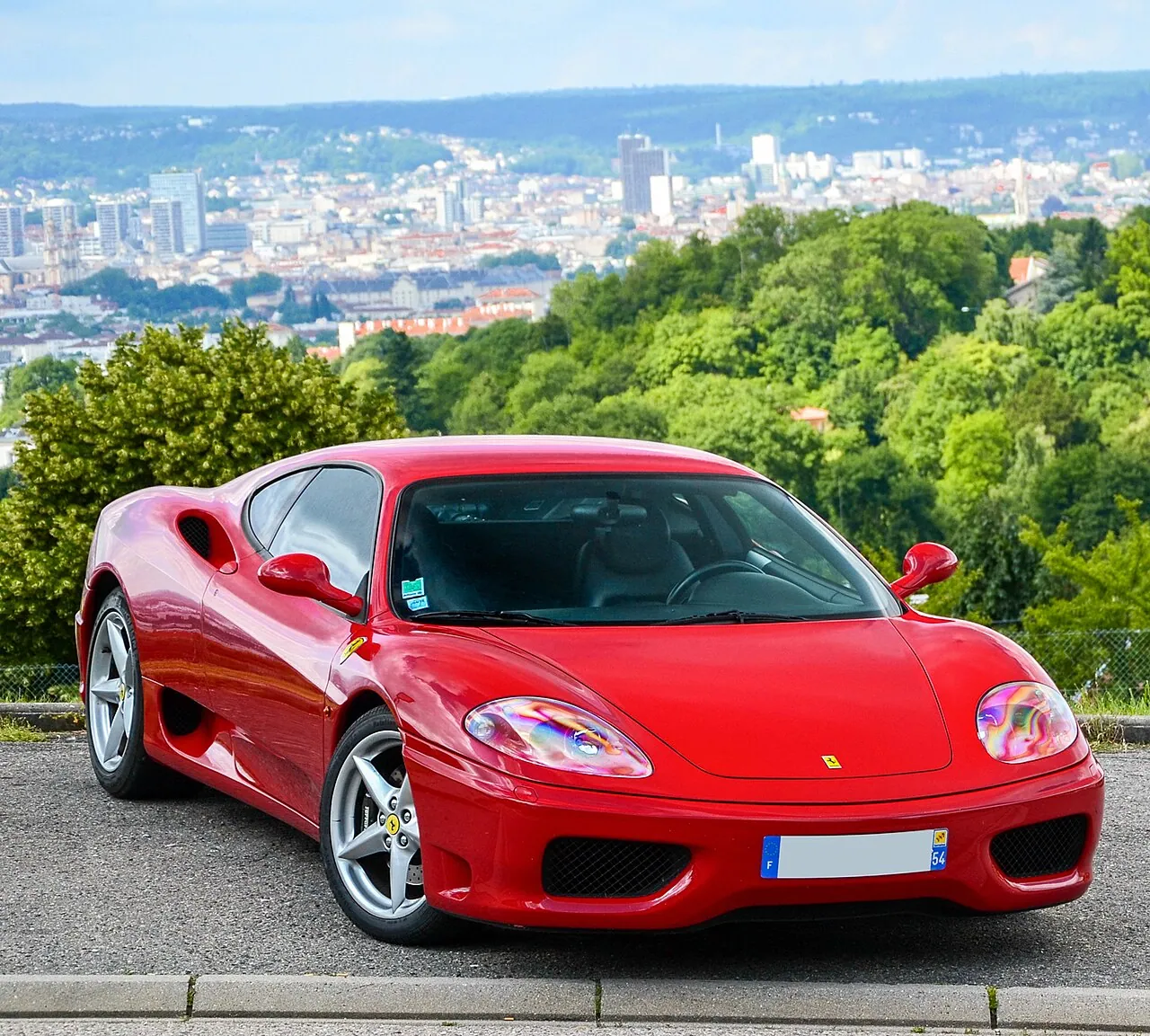

Photo: Alexandre Prévot from Nancy, France · CC BY-SA 2.0
Production1999–2005
EngineV8
Power400 PS
Top speed295 km/h
Units built16244
The 360 Modena replaced the F355 in 1999, adopting an all-new aluminum frame developed by Ferrari jointly with Alcoa. It is 40 percent stiffer than the steel frames of previous models and 28 percent lighter, despite an overall dimensional increase of ten percent. The Pininfarina design moved away from the sharp edges and pop-up headlights of preceding years. The 3.6-liter V8 with a flat-plane crankshaft and titanium connecting rods delivers 400 PS at 8500/min and accelerates the car to 100 km/h in 4.5 seconds.
Summarized from the sources cited below; every figure in the text was automatically verified against the sources.
Good to know
- The 360 was the first Ferrari whose shape was created entirely with computer-aided surface modeling; Pininfarina used Alias software for the process.
- Instead of a front radiator grille, the front features two separate air intakes at each corner; twin diffusers in the rear replace a rear spoiler.
- The F1 gearbox shifts gears in 150 milliseconds and even includes a dedicated mode for snow and ice.
- Of the 1810 Modena Coupés built for the US, only 469 had a manual transmission.
Learn moreDesign · Technical details · Variants and production numbers
Design
Between 1995 and 1997, Ferrari commissioned Pininfarina to design an entirely fresh shape for the new aluminum chassis. Goran Popović styled it under the direction of Lorenzo Ramaciotti. The team explored several full-scale clay models, combining a curvaceous beltline with large side intakes and clear headlight covers, and refined the surfaces on the computer. The design was approved at the end of 1997 and frozen for production the following year.
Technical details
The V8 is a five-valve design: three intake and two exhaust valves per cylinder, with variable timing on the exhaust side. Compared to the F355, the engine gained only 14 kW (19 PS). With the F1 transmission, gears are selected via paddle shifters—up on the right, down on the left. There is no clutch pedal: the electronics engage the clutch only when the revs match. The Modena weighs 1365 kg, the Spider 1425 kg.
Variants and production numbers
The Modena was built first, followed later by the Spider and the special-edition Challenge Stradale. Worldwide, 8800 Modenas, 7565 Spiders, and 1288 Challenge Stradales were produced, with 4199 cars heading to the US. In addition, there were factory race cars: the 360 Modena Challenge was prepared by tuner Michelotto, who also developed the N-GT for the FIA class of the same name. For the first time, racing versions were a distinct model rather than a conversion kit. A single Barchetta was built based on the Spider.
Summarized from the cited sources; every figure was automatically verified against the sources.
Frequently asked questions about the Ferrari 360 Modena
When was the Ferrari 360 Modena built?
The Ferrari 360 Modena was built from 1999 to 2005.
How much power does the Ferrari 360 Modena have?
Power of the Ferrari 360 Modena: 400 PS at 8500 rpm, specific output: 111.5 cv/liter.
What engine does the Ferrari 360 Modena have?
Engine of the Ferrari 360 Modena: 3586 cm³ Tipo F131 V8. It sits behind the seats as a mid-engine.
How fast is the Ferrari 360 Modena?
Top speed of the Ferrari 360 Modena: over 295 km/h.
How fast does the Ferrari 360 Modena accelerate from 0 to 100 km/h?
The Ferrari 360 Modena accelerates from 0 to 100 km/h in 4.5 s.
How many Ferrari 360 Modena were built?
16244 units of the Ferrari 360 Modena were built.
Who designed the Ferrari 360 Modena?
Design of the Ferrari 360 Modena: Goran Popović at Pininfarina.
What are the predecessor and successor of the Ferrari 360 Modena?
Predecessor: Ferrari F355. Successor: Ferrari F430.
